High Voltage Test System 300kV HV Lightning Impulse Voltage Generator For High-voltage Device
HV Lightning Impulse Voltage Generator is used for impulse voltage test of lightning impulse voltage full wave , lightning impulse voltage chopped wave and operation impulse voltage wave which apply to electrical equipment ect. Multiple waveform impulse voltage generator can produce eight kinds of waveforms of standard lightning wave, operation wave, lightning chopped wave, oscillating lightning wave, oscillating operation wave, line insulator steep wave, composite insulator steep wave, transformer induction operation wave. The technology index accords with national standard and IEC standard, is in the leading position at home and has reached an advanced level in the world. Key Features
1.Complete sets, full voltage classes.
2.Small loop inductance, take the band elimination filter measures, still produce standard impulse wave in the large-capacity load , large load capacity, high voltage utilization, convenient to adjust wave.
3.Simple operation, excellent synchronization performance, reliable action.
4.Use constant current charging technology, high automation, strong anti-interference performance.
5.Use digital measurement and analysis system and computer on line processing system for impulse test data, greatly improve the test technology and efficiency.
Technical Specifications
| Parameter | Specification |
| Impulse voltage grade | 100kV-7200kV |
| Standard lightning wave | 1.2±30%/50±20%µS |
| Peak oscillation | 5% |
| Standard switching wave | 250±20%/2500±60%µS |
| Virtual front time of oscillating lightning wave | 15µS |
| Virtual front time of oscillating switching wave | 15µS-1µS |
| Minimum output voltage | 10%Un |
| Charging voltage instability | 1% |
| Synchronizing range | 20% |
| Synchronous discharge error rate | 2% |
| Ignition range | 10%-100% |
| Working time | 70%UN Discontinuous work (charge-discharge 300s/time)
70%nn Continuous work (charge-discharge 120s/time) |
| Generator efficiency | Lightning wave (no load) - 90% |
| Time to chopping | 2-5µS |
Product Range
HV Hipot Test Set System, Transformer Test Equipment, HV Switchgear Test Set, Relay Protection Tester, CT/PT Tester, SF6/Oil Tester, Transmission Line Test System, Insulation Resistance Tester, Earth Resistance Tester
About Sansion
Sansion Power Electric was established in 2005, a technocrat who have rich experience of more than 20 years in R&D, manufacturing and marketing of power electrical testing products, which are widely used in the fields of power electric, railroad, energy conservation and environment protection, water conservancy, petrochemical industry, aerospace and etc.

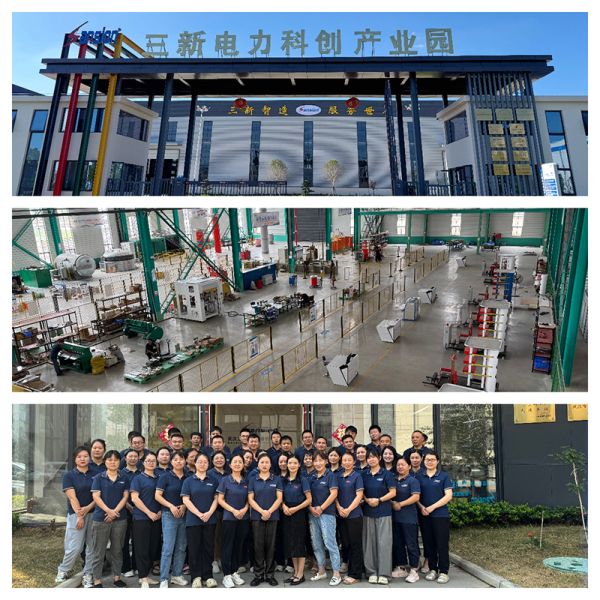

Sansion Power Electric contains R&D department, instruments manufacturing workshop, HV workshop, sample exhibition room, HV testing laboratory, quality control department, general office, sales departments, information office and ete, now we have more than 80 employees including 20 technical engineers. We have obtained the IS09001 quality system certification and all products strictly conform to theinternational lEC and Chinese state standards.
Certification
Customer Visits
Pack and Ship
Frequently Asked Questions
Is your company a sales company or a manufacturer?
Sansion Power Electric Co., Ltd. is an industrial and trade enterprise with its own factory, self-produced and self-sold. Founded in 2005, we have twenty years of production experience with reliable production lines, test rooms, and R&D centers.
Are goods in stock, can they be customized, and what is the delivery time?
Goods are made to order according to customer requirements using the latest technology. Delivery time is typically within 10 working days.
Is the quality guaranteed?
We use imported components and conduct three quality inspections before shipment. Export products are packed in non-fumigation wooden boxes.
What are the after-sales terms?
We offer free consulting service, one year warranty, and support through email communication, video calls, and on-site technical assistance to resolve after-sales problems promptly.
What are the cooperative countries or regions?
Products exported to United States, France, Brazil, Australia, Spain, Portugal, Oman, Russia, Netherlands, Indonesia, Bangladesh, Saudi Arabia, Chile, Colombia, Panama, Malaysia and other countries.
In which fields can your product be applied?
Our services span Power, Railway, Energy Conservation & Environmental Protection, Water Conservancy, Petrochemicals, and Aerospace. Our products incorporate advanced international technologies and have consistently excelled in national high-voltage testing competitions.
